Architectural · A-MPW2M

Accessible Directional And

Materials

Elements

About this detail

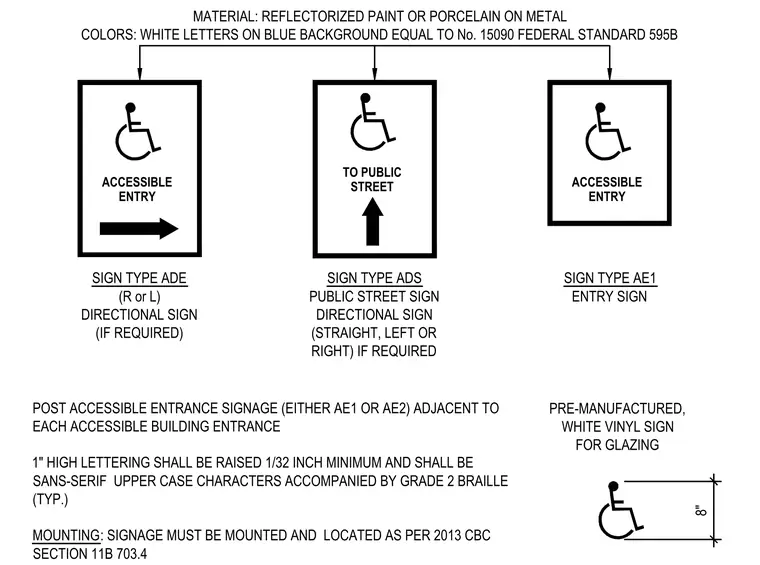

Accessible entrance and directional signage types are specified with reflectorized paint or porcelain on metal, featuring white letters on a blue background equal to Federal Standard 595B number 15090. Lettering must be one inch high, raised a minimum of one-thirty-second of an inch in sans-serif upper-case characters accompanied by Grade 2 Braille. Signage must be mounted and located in accordance with 2013 California Building Code Section 11B 703.4 adjacent to each accessible building entrance. Types include sign type ADE directional sign with right or left arrow, sign type ADS public street directional sign, sign type AE1 entry sign, and eight-inch pre-manufactured white vinyl signs for glazing.
