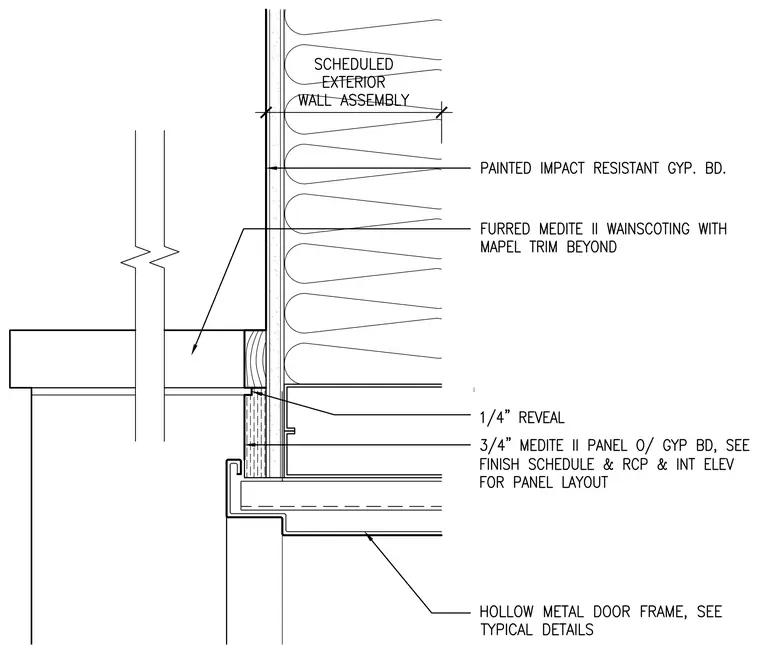

This interior architectural detail shows a wainscoting assembly transitioning to a hollow metal door frame. The wall features a painted impact resistant gypsum board over a scheduled exterior wall assembly. A furred Medite II wainscoting panel with mapel trim is installed above the door frame height, featuring a one-quarter inch reveal. Below the cap, a three-quarter inch Medite II panel over gypsum board runs down to the door frame head. A hollow metal door frame sits below with layout details referenced to interior elevations and finish schedules.
