Door Threshold Detail

Materials

Elements

About this detail

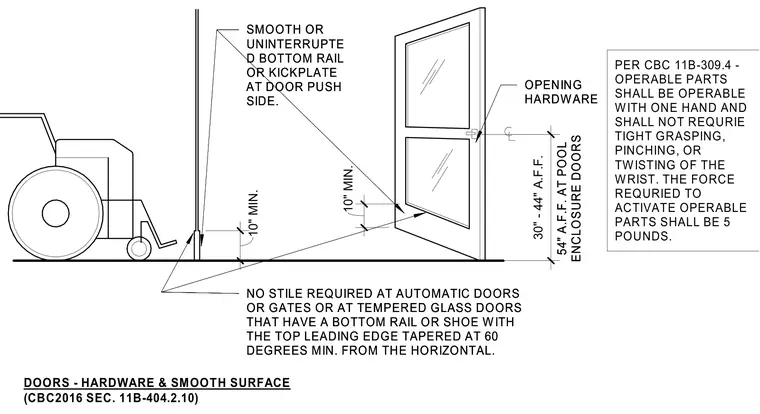

Compliance diagram showing door hardware heights and bottom rail or kickplate requirements per California Building Code. Opening hardware is positioned between thirty and forty-four inches above finished floor, or fifty-four inches at pool enclosure doors. Operable parts require no tight grasping, pinching, or twisting of the wrist and are limited to a five pound activation force. The push side requires a smooth or uninterrupted bottom rail or ten inch minimum kickplate height, with specific exemptions for automatic doors, gates, or tempered glass doors with a bottom shoe tapered at sixty degrees minimum.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
