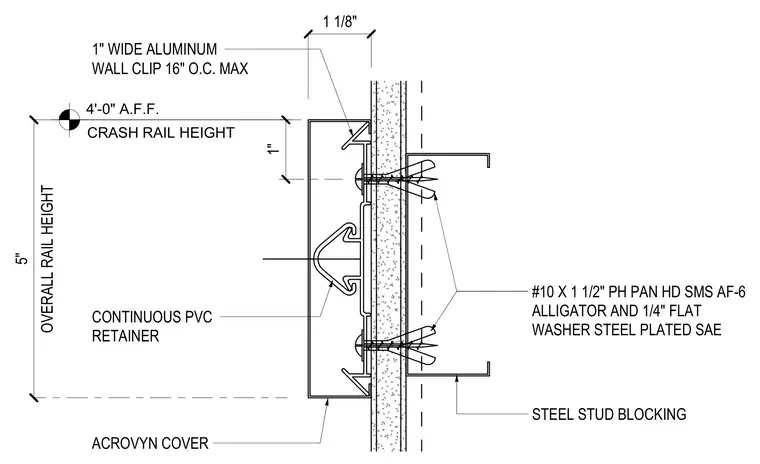

An Acrovyn cover with an overall rail height of 5 inches is mounted to a continuous PVC retainer and 1-inch wide aluminum wall clips spaced at a maximum of 16 inches on center. The assembly is secured to steel stud blocking with number 10 by 1 1/2 inch pan head sheet metal screws, AF-6 Alligator anchors, and 1/4-inch steel plated SAE flat washers. The crash rail centerline is installed at 4 feet above finished floor.
CONTINUOUS PVC RETAINER 1" WIDE ALUMINUM WALL CLIP 16" O.C. MAX STEEL STUD BLOCKING #10 X 1 1/2" PH PAN HD SMS AF-6 ALLIGATOR AND 1/4" FLAT WASHER STEEL PLATED SAE 1 1/8" OVERALL RAIL HEIGHT 5" 1" ACROVYN COVER 4'-0" A.F.F. CRASH RAIL HEIGHT
