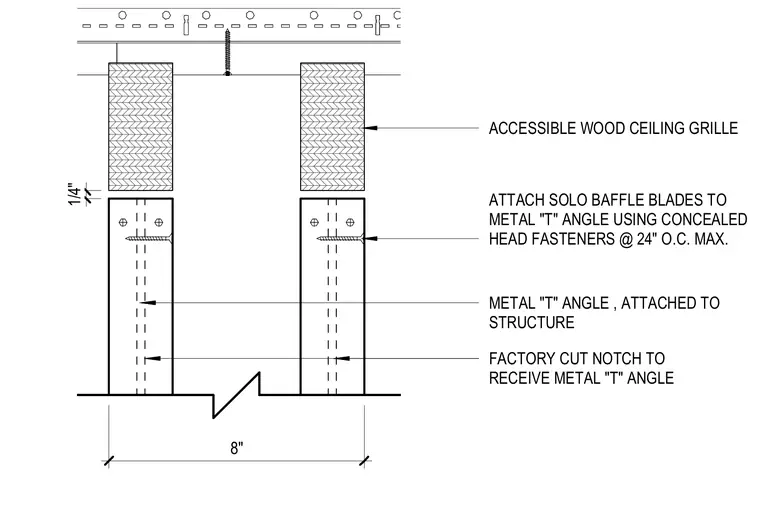

Solo wood baffle blades feature a factory-cut notch to receive a supporting metal tee angle secured directly to the overhead building structure. Baffle blades fasten to the metal tee using concealed-head fasteners spaced at twenty-four inches on center maximum, maintaining a quarter-inch clearance below an accessible wood ceiling grille.
1/4" 8" ATTACH SOLO BAFFLE BLADES TO METAL "T" ANGLE USING CONCEALED HEAD FASTENERS @ 24" O.C. MAX. METAL "T" ANGLE , ATTACHED TO STRUCTURE FACTORY CUT NOTCH TO RECEIVE METAL "T" ANGLE ACCESSIBLE WOOD CEILING GRILLE
