An open shelving unit constructed from three-quarter-inch particleboard and two-by-four wood framing is fully clad in plastic laminate designation PL1 on all exposed and underside surfaces. The shelf assembly mounts to a partition wall consisting of type X gypsum board over three-and-five-eighths-inch twenty-gauge metal studs spaced per floor plan. A two-by-four wood ledger clad in plastic laminate attaches directly to the vertical metal studs using quarter-inch minimum diameter toggle bolts with washers spaced at sixteen inches on center maximum. Continuous caulking seals the joint between the shelf assembly and the gypsum board wall. An under-cabinet light fixture integrates into the underside of the shelf assembly. Metal angle support brackets are required for spans exceeding three feet.

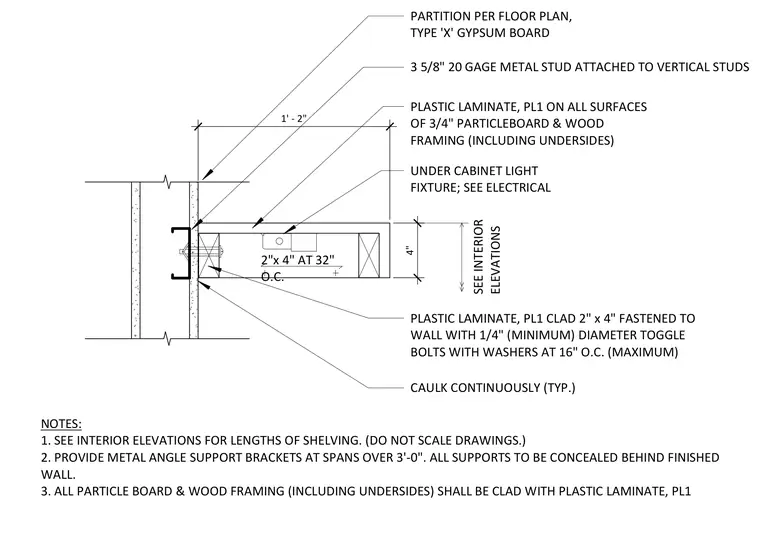

4" 1' - 2" PARTITION PER FLOOR PLAN, TYPE 'X' GYPSUM BOARD 3 5/8" 20 GAGE METAL STUD ATTACHED TO VERTICAL STUDS PLASTIC LAMINATE, PL1 ON ALL SURFACES OF 3/4" PARTICLEBOARD & WOOD FRAMING (INCLUDING UNDERSIDES) 2"x 4" AT 32" O.C. UNDER CABINET LIGHT FIXTURE; SEE ELECTRICAL PLASTIC LAMINATE, PL1 CLAD 2" x 4" FASTENED TO WALL WITH 1/4" (MINIMUM) DIAMETER TOGGLE BOLTS WITH WASHERS AT 16" O.C. (MAXIMUM) CAULK CONTINUOUSLY (TYP.) SEE INTERIOR ELEVATIONS NOTES: 1. SEE INTERIOR ELEVATIONS FOR LENGTHS OF SHELVING. (DO NOT SCALE DRAWINGS.) 2. PROVIDE METAL ANGLE SUPPORT BRACKETS AT SPANS OVER 3'-0". ALL SUPPORTS TO BE CONCEALED BEHIND FINISHED WALL. 3. ALL PARTICLE BOARD & WOOD FRAMING (INCLUDING UNDERSIDES) SHALL BE CLAD WITH PLASTIC LAMINATE, PL1
