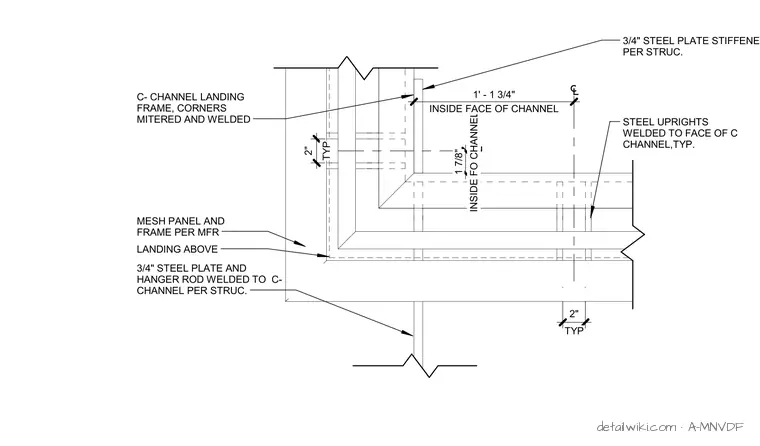

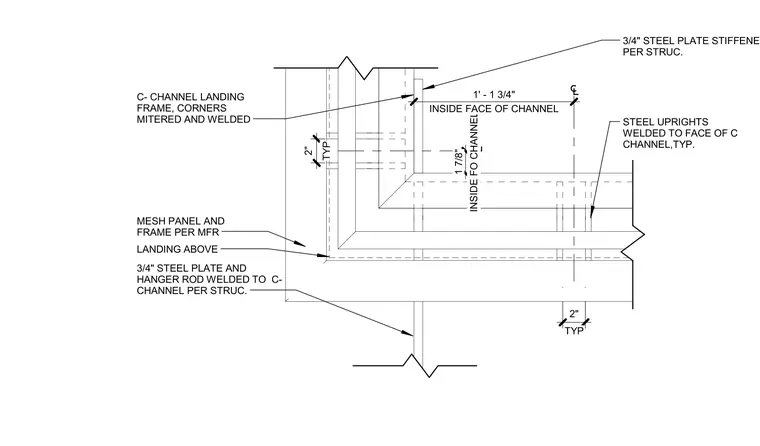

The stair landing frame consists of a channel with mitered and welded corners, reinforced with typical three-quarter-inch steel plate stiffeners per structural drawings. Steel uprights are welded to the face of the channel, while a mesh panel and frame are installed per the manufacturer. A three-quarter-inch steel plate and hanger rod are welded to the channel per structural requirements below the landing above. Dimensions reference the inside face of the channel and centerline spacing.
TYP 2" 3/4" STEEL PLATE STIFFENER, PER STRUC. C- CHANNEL LANDING FRAME, CORNERS MITERED AND WELDED MESH PANEL AND FRAME PER MFR LANDING ABOVE 3/4" STEEL PLATE AND HANGER ROD WELDED TO C- CHANNEL PER STRUC. STEEL UPRIGHTS WELDED TO FACE OF C CHANNEL,TYP. TYP 2" INSIDE FO CHANNEL 1 7/8" INSIDE FACE OF CHANNEL 1' - 1 3/4"
