A-MNTC6 — Interior 1 Cornice Detail

Architectural · A-MNTC6

Interior 1 Cornice Detail

Scale: SCALE: 6" = 1'-0"
Units: imperial
Sheet: A-586
Discipline: Architectural

Materials

Gypsum / Drywall Timber / Wood

Elements

Ceilings Millwork / Casework

Text on the drawing

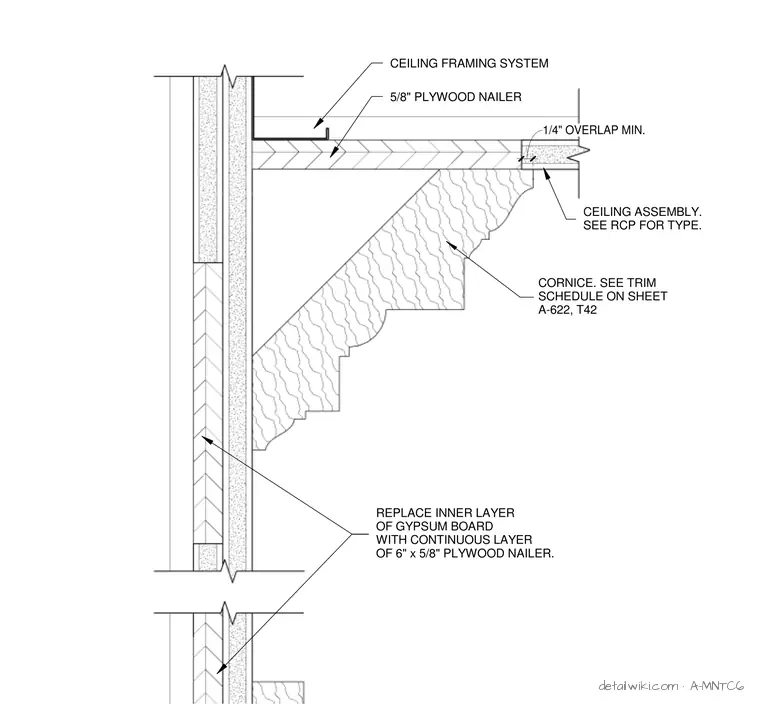

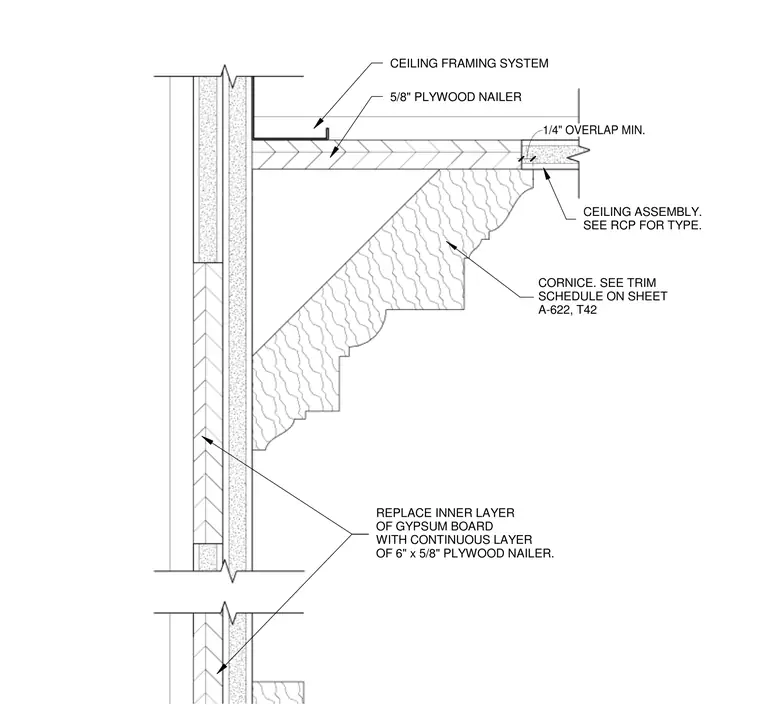

CEILING FRAMING SYSTEM 5/8" PLYWOOD NAILER 1/4" OVERLAP MIN. CORNICE. SEE TRIM SCHEDULE ON SHEET A-622, T42 CEILING ASSEMBLY. SEE RCP FOR TYPE. REPLACE INNER LAYER OF GYPSUM BOARD WITH CONTINUOUS LAYER OF 6" x 5/8" PLYWOOD NAILER.
