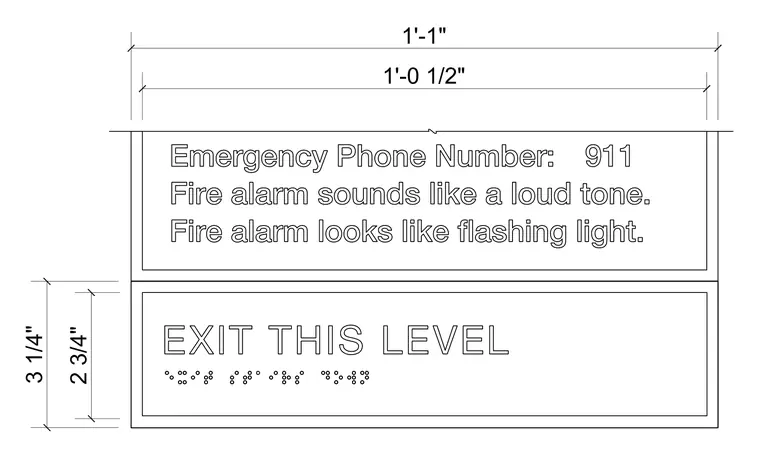

This interior signage detail specifies an emergency notification and exit sign measuring one foot one inch wide by three and one-quarter inches high overall. The top panel contains text detailing an emergency phone number of 911 along with fire alarm descriptions. The bottom panel features the raised text EXIT THIS LEVEL with corresponding braille dots underneath. Overall dimensions and individual panel heights are fully dimensioned.
