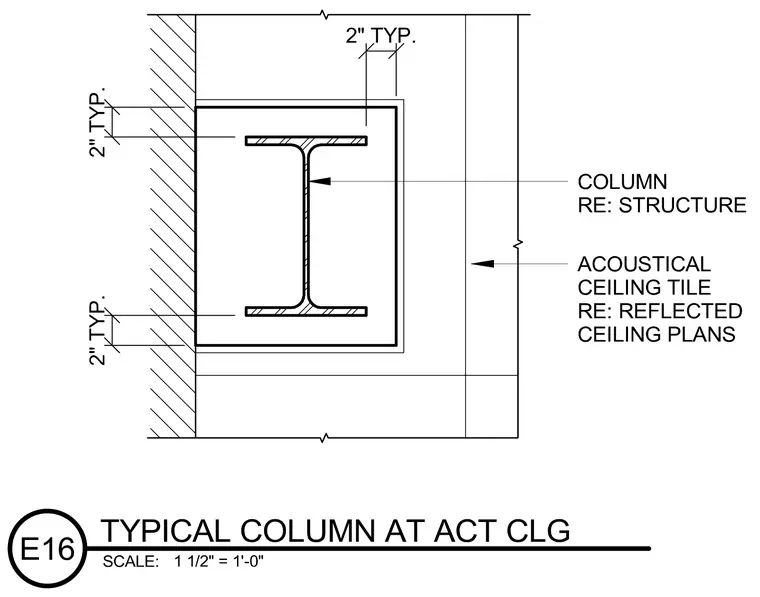

An acoustical ceiling tile system frames around a structural steel column with a two-inch typical clearance on all sides. The column flange aligns with the ceiling framing per structural requirements. Acoustical ceiling tiles abut the perimeter of the column enclosure.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
