Text on the drawing

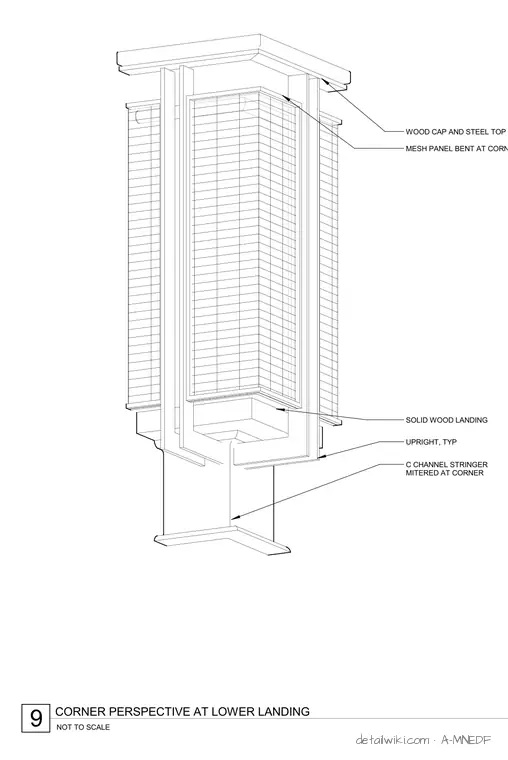

WOOD CAP AND STEEL TOP PLATE MESH PANEL BENT AT CORNER C CHANNEL STRINGER MITERED AT CORNER SOLID WOOD LANDING UPRIGHT, TYP 9 CORNER PERSPECTIVE AT LOWER LANDING NOT TO SCALE
