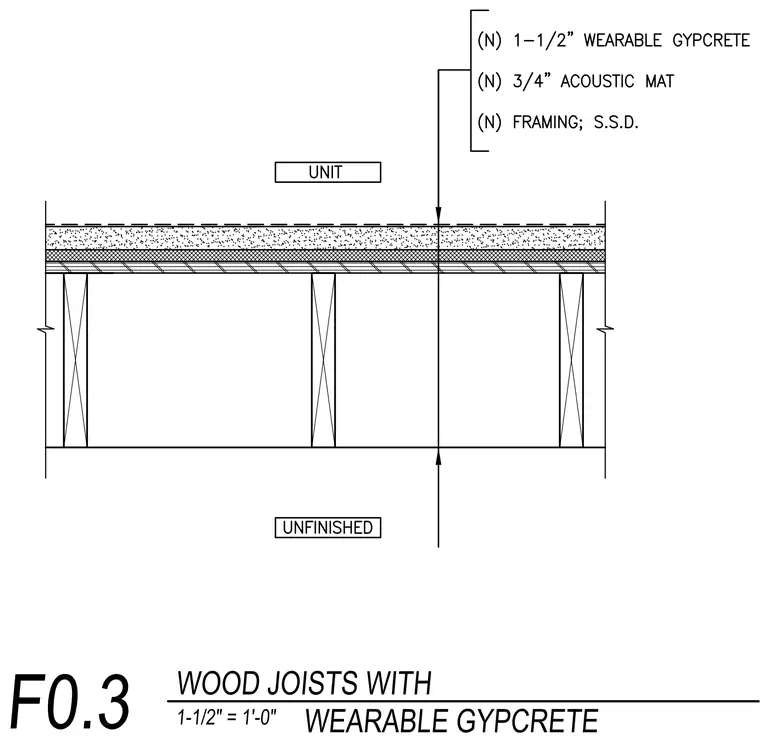

This wood-framed floor assembly consists of new wood framing carrying a three-quarter-inch acoustic mat topped with one and one-half inches of wearable gypcrete. The underside of the wood joists remains unfinished. The assembly provides sound attenuation between vertical building units.
