Architectural · A-MN7Z6

Insulated Metal Panel Door Jamb at HSS Column

Materials

Elements

Columns Beams Walls Doors Ramps Insulation

About this detail

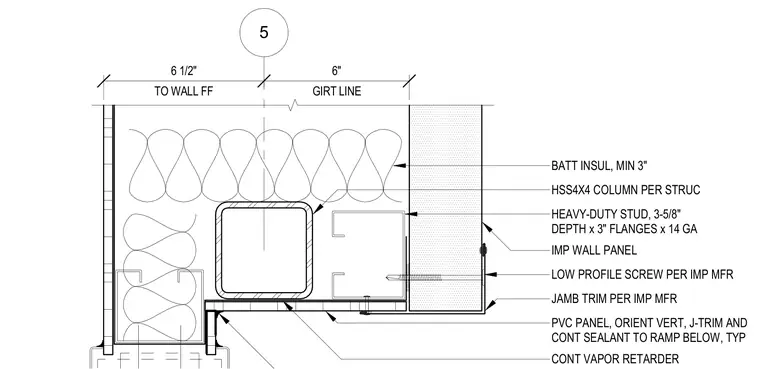

This wall jamb detail integrates an insulated metal panel system with an HSS4x4 structural steel column and heavy-duty steel framing. The assembly features a 14-gauge stud measuring 3-5/8 inches in depth with 3-inch flanges, secured alongside minimum 3-inch batt insulation and a continuous vapor retarder. Exterior insulated metal panels are fastened using low-profile screws per manufacturer specifications, complete with jamb trim and continuous sealant interfacing with the ramp below. A vertical PVC panel finish with J-trim completes the interior threshold condition.
