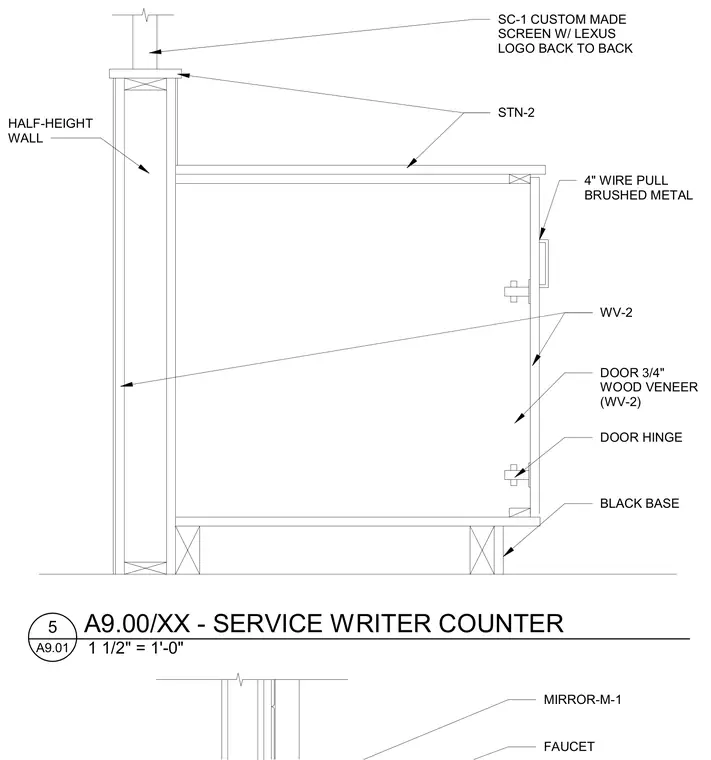

A service writer counter assembly is constructed with a half-height partition wall finished in three-quarter-inch wood veneer designated as WV-2. The counter features a solid surfacing countertop designated as STN-2 and a black base support. Cabinet doors are fabricated from three-quarter-inch wood veneer with hinges and a four-inch brushed metal wire pull handle. A custom screen designated as SC-1 with a Lexus logo extends upward from the counter back-to-back. An adjacent section includes a mirror designated as M-1 and a faucet.
STN-2 4" WIRE PULL BRUSHED METAL WV-2 HALF-HEIGHT WALL BLACK BASE DOOR HINGE DOOR 3/4" WOOD VENEER (WV-2) SC-1 CUSTOM MADE SCREEN W/ LEXUS LOGO BACK TO BACK FAUCET MIRROR-M-1 1 1/2" = 1'-0" A9.01 5 A9.00/XX - SERVICE WRITER COUNTER
