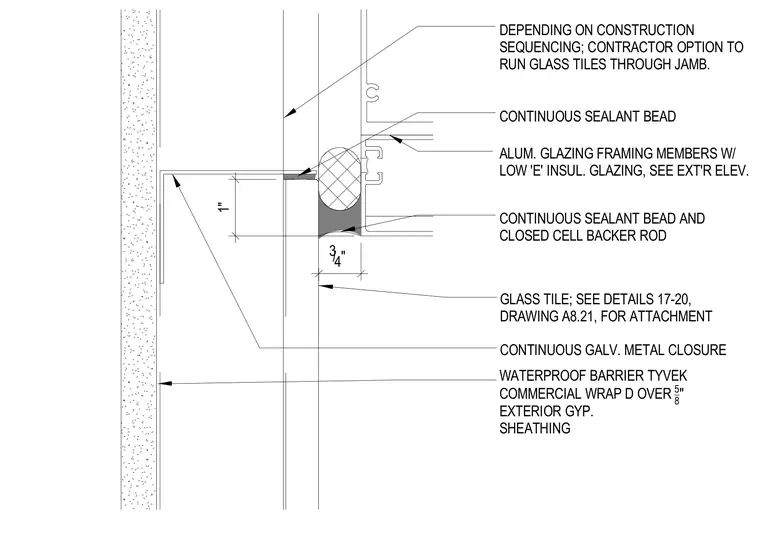

An aluminum glazing framing member with low-E insulated glazing connects to an exterior wall assembly comprising glass tile over five-eighths-inch exterior gypsum sheathing and Tyvek Commercial Wrap D waterproof barrier. A continuous galvanized metal closure spans the jamb transition. A continuous sealant bead and closed-cell backer rod seal the joint alongside a continuous sealant bead at the frame interface. Construction sequencing offers a contractor option to run glass tiles through the jamb.
3/4" 1" WATERPROOF BARRIER TYVEK COMMERCIAL WRAP D OVER 5_ 8 " EXTERIOR GYP. SHEATHING GLASS TILE; SEE DETAILS 17-20, DRAWING A8.21, FOR ATTACHMENT CONTINUOUS SEALANT BEAD AND CLOSED CELL BACKER ROD ALUM. GLAZING FRAMING MEMBERS W/ LOW 'E' INSUL. GLAZING, SEE EXT'R ELEV. CONTINUOUS GALV. METAL CLOSURE CONTINUOUS SEALANT BEAD DEPENDING ON CONSTRUCTION SEQUENCING; CONTRACTOR OPTION TO RUN GLASS TILES THROUGH JAMB.
