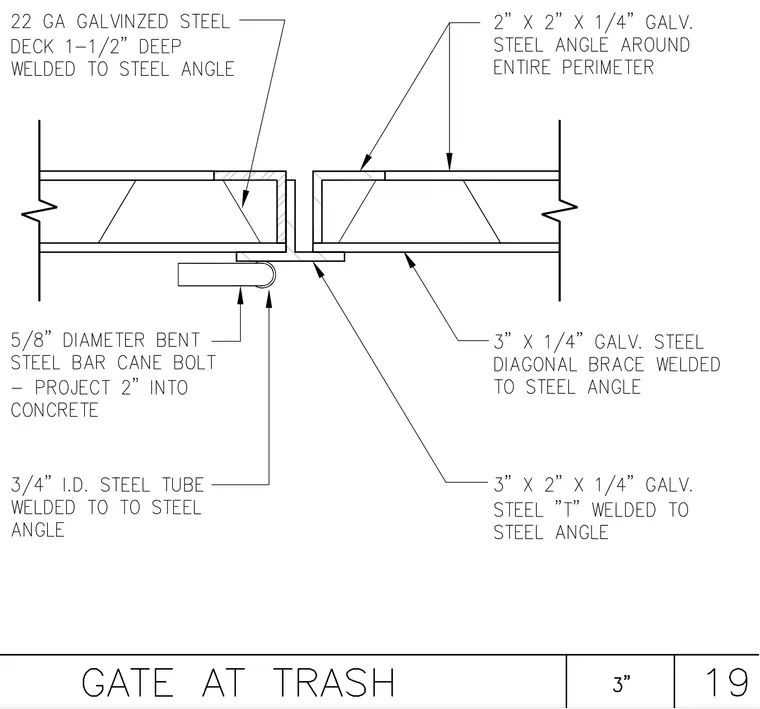

A twenty-two gauge galvanized steel deck, one and one-half inches deep, is welded to a surrounding two-inch by two-inch by one-quarter-inch galvanized steel angle. A three-inch by two-inch by one-quarter-inch galvanized steel tee is welded to the steel angle along with a three-inch by one-quarter-inch galvanized steel diagonal brace. A five-eighths-inch diameter bent steel bar cane bolt projects two inches into the concrete and secures into a three-quarter-inch inside diameter steel tube welded to the steel angle.
