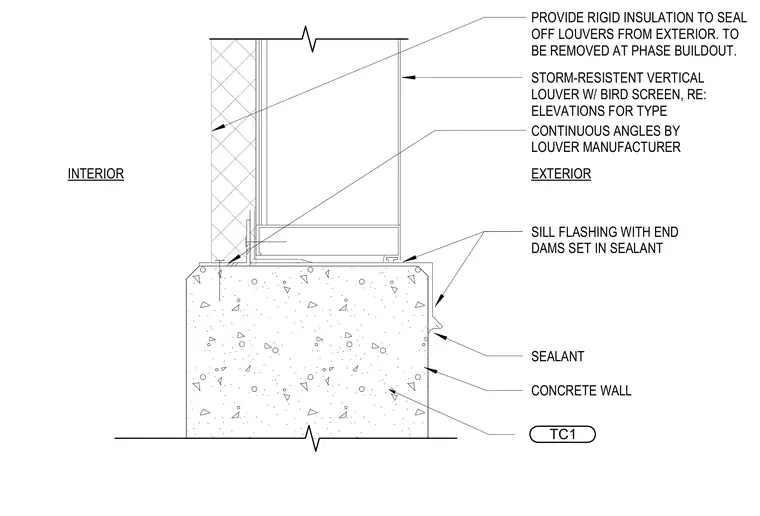

A storm-resistant vertical louver with a bird screen sits atop a concrete wall and is secured with continuous angles provided by the louver manufacturer. Sill flashing with end dams is set in sealant along the concrete wall interface, with additional exterior sealant applied at the joint. Rigid insulation is installed to seal off the louvers from the exterior and is designated to be removed at phase buildout.
STORM-RESISTENT VERTICAL LOUVER W/ BIRD SCREEN, RE: ELEVATIONS FOR TYPE SILL FLASHING WITH END DAMS SET IN SEALANT SEALANT CONCRETE WALL EXTERIOR INTERIOR CONTINUOUS ANGLES BY LOUVER MANUFACTURER PROVIDE RIGID INSULATION TO SEAL OFF LOUVERS FROM EXTERIOR. TO BE REMOVED AT PHASE BUILDOUT. TC1
