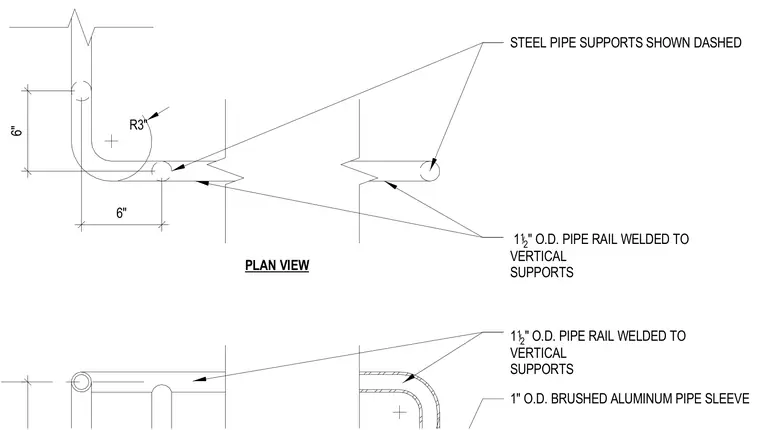

A one-and-one-half-inch outside diameter pipe rail is welded to vertical steel pipe supports shown with a six-inch offset and a three-inch radius. One-inch outside diameter brushed aluminum pipe sleeves enclose the vertical steel pipe supports. Dimensions indicate a six-inch spacing between support centers in plan view.
6" 6" R3" STEEL PIPE SUPPORTS SHOWN DASHED PLAN VIEW 1 1 /2 " O.D. PIPE RAIL WELDED TO VERTICAL SUPPORTS 1" O.D. BRUSHED ALUMINUM PIPE SLEEVE 1 1 /2 " O.D. PIPE RAIL WELDED TO VERTICAL SUPPORTS
