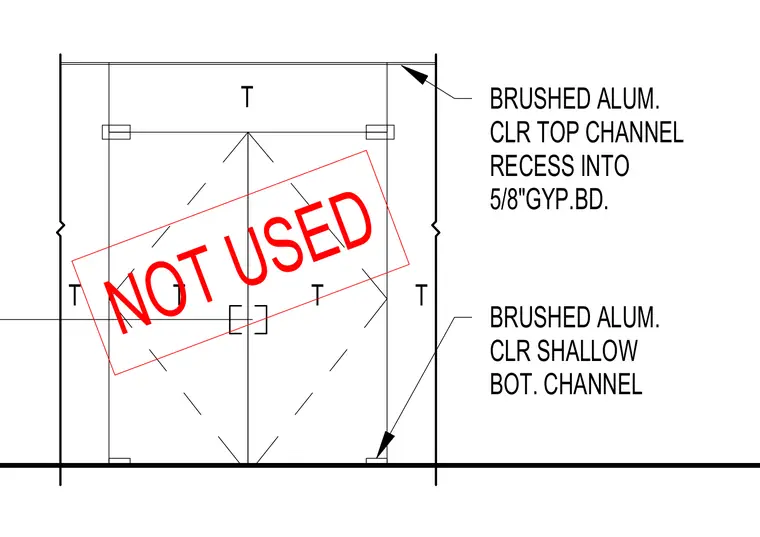

A brushed aluminum clear top channel recesses into five-eighths inch gypsum board. A brushed aluminum clear shallow bottom channel anchors the assembly at the base. The panel assembly features aluminum framing channels integrated directly into the gypsum board wall construction.
T T T T T BRUSHED ALUM. CLR SHALLOW BOT. CHANNEL BRUSHED ALUM. CLR TOP CHANNEL RECESS INTO 5/8"GYP.BD. NOT USED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
