Scheduled wood plank wall planks fasten through the tongue to a one-quarter-inch substrate using finish nails and putty as necessary. Edge conditions include continuous channel L-angles with return keys, aligned with outside and inside corners as indicated. The visible wall and substrate are painted black behind joints and reveals. Scheduled framing and finishes complete the wall assembly.

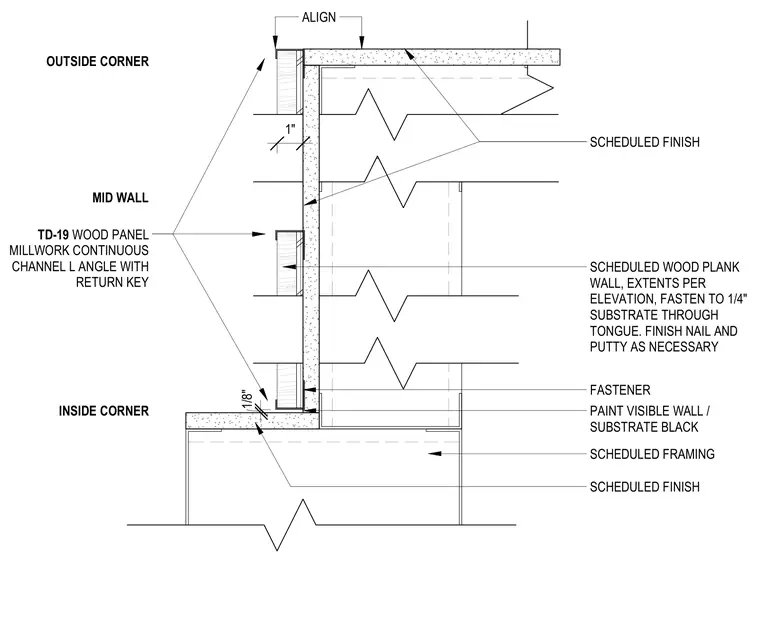

SCHEDULED WOOD PLANK WALL, EXTENTS PER ELEVATION, FASTEN TO 1/4" SUBSTRATE THROUGH TONGUE. FINISH NAIL AND PUTTY AS NECESSARY FASTENER TD-19 WOOD PANEL MILLWORK CONTINUOUS CHANNEL L ANGLE WITH RETURN KEY SCHEDULED FRAMING SCHEDULED FINISH PAINT VISIBLE WALL / SUBSTRATE BLACK SCHEDULED FINISH INSIDE CORNER MID WALL OUTSIDE CORNER 1/8" ALIGN 1"
