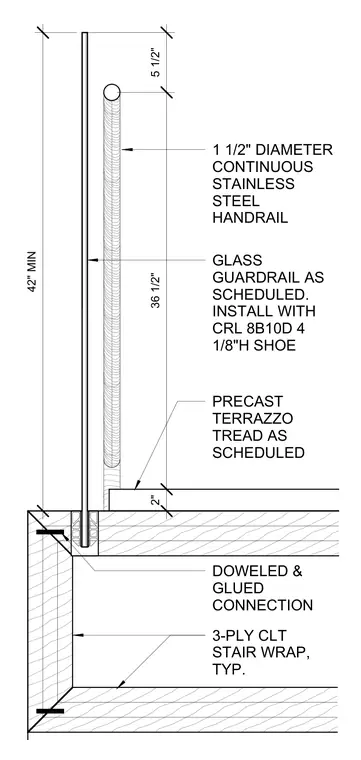

The assembly is built upon a 3-ply cross-laminated timber stair wrap connected with doweled and glued joints and clad with a precast terrazzo tread as scheduled. A glass guardrail is installed using a CRL 8B10D 4 1/8-inch high shoe anchored to the stair structure. A 1 1/2-inch diameter continuous stainless steel handrail is supported above the glass guardrail assembly.
PRECAST TERRAZZO TREAD AS SCHEDULED 1 1/2" DIAMETER CONTINUOUS STAINLESS STEEL HANDRAIL DOWELED & GLUED CONNECTION GLASS GUARDRAIL AS SCHEDULED. INSTALL WITH CRL 8B10D 4 1/8"H SHOE 3-PLY CLT STAIR WRAP, TYP. 42" MIN 5 1/2" 36 1/2" 2"
