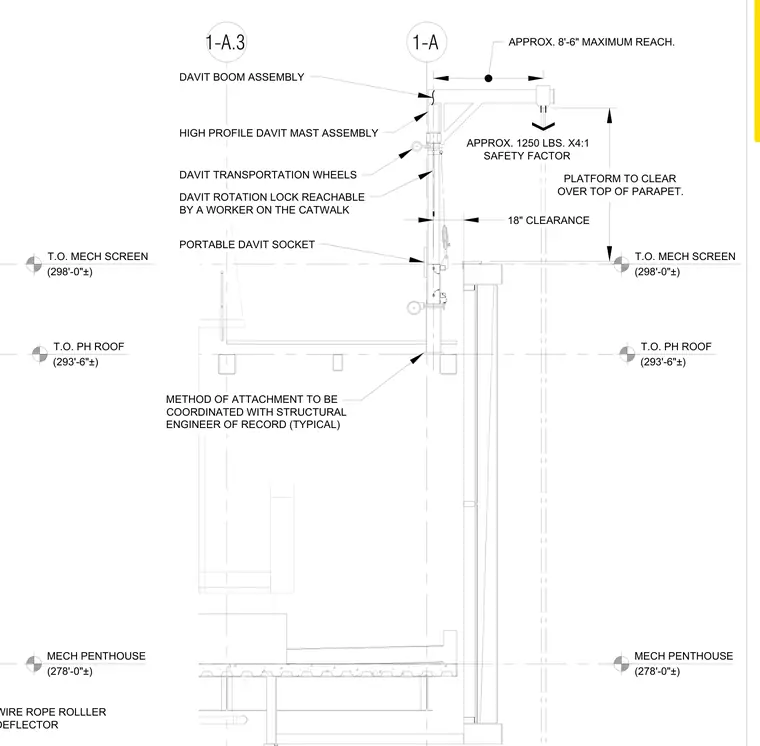

The high profile davit mast assembly mounts to the roof structure to provide window washing and exterior maintenance access. The system includes a davit boom assembly rated for an approximate 1250 lbs capacity with a four-to-one safety factor and an approximate eight-foot-six-inch maximum reach. A wire rope roller deflector and davit transportation wheels facilitate operation. The mast features a davit rotation lock reachable by a worker on the catwalk platform to clear over the top of the parapet with an eighteen-inch clearance. A portable davit socket secures the mast, and the attachment method is to be coordinated with the structural engineer of record.
1-A 1-A.3 WIRE ROPE ROLLLER DEFLECTOR MECH PENTHOUSE (278'-0"±) T.O. MECH SCREEN (298'-0"±) T.O. PH ROOF (293'-6"±) MECH PENTHOUSE (278'-0"±) T.O. MECH SCREEN (298'-0"±) T.O. PH ROOF (293'-6"±) 18" CLEARANCE APPROX. 8'-6" MAXIMUM REACH. APPROX. 1250 LBS. X4:1 SAFETY FACTOR DAVIT BOOM ASSEMBLY DAVIT TRANSPORTATION WHEELS PORTABLE DAVIT SOCKET DAVIT ROTATION LOCK REACHABLE BY A WORKER ON THE CATWALK PLATFORM TO CLEAR OVER TOP OF PARAPET. METHOD OF ATTACHMENT TO BE COORDINATED WITH STRUCTURAL ENGINEER OF RECORD (TYPICAL) HIGH PROFILE DAVIT MAST ASSEMBLY
