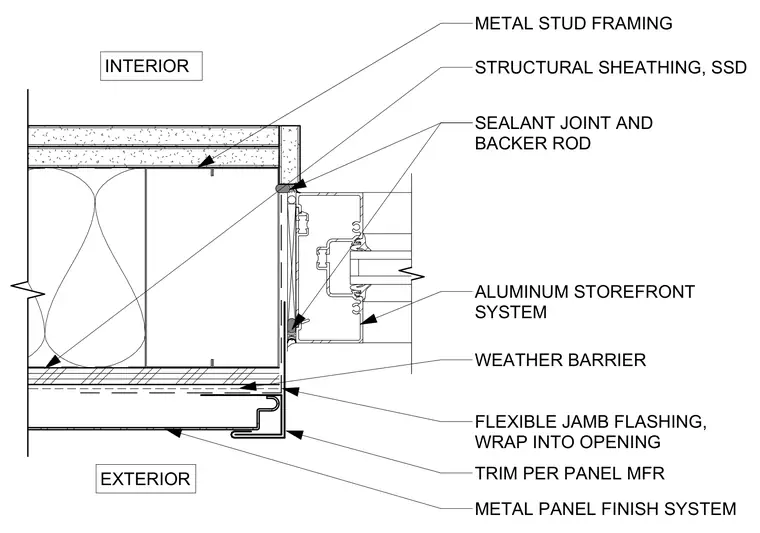

An aluminum storefront system is installed adjacent to exterior metal panel finish system over cold-formed metal stud framing and structural sheathing. A weather barrier and flexible jamb flashing wrap into the rough opening. A sealant joint with backer rod seals the transition between the storefront frame and the exterior finish, while custom trim provided per the panel manufacturer finishes the corner.
METAL STUD FRAMING ALUMINUM STOREFRONT SYSTEM WEATHER BARRIER STRUCTURAL SHEATHING, SSD SEALANT JOINT AND BACKER ROD FLEXIBLE JAMB FLASHING, WRAP INTO OPENING EXTERIOR INTERIOR METAL PANEL FINISH SYSTEM TRIM PER PANEL MFR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
