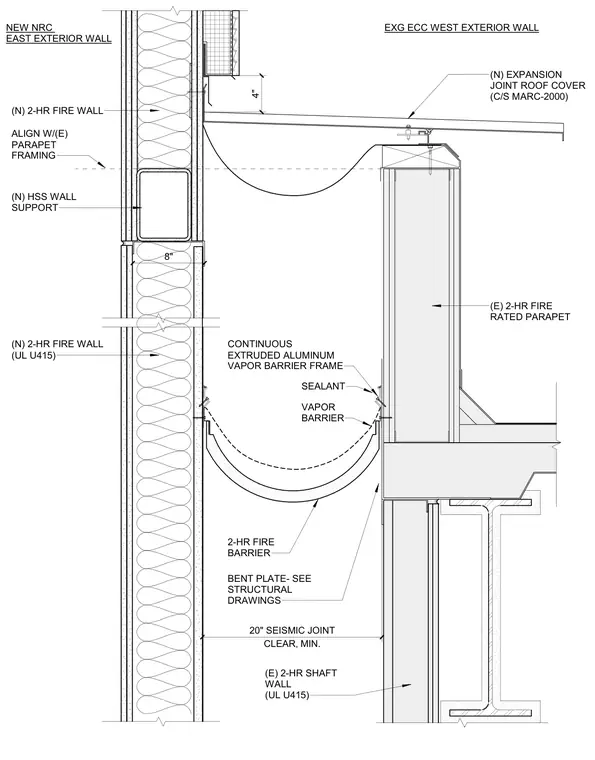

An exterior wall seismic expansion joint spans between a new NRC east exterior wall and an existing ECC west exterior wall, providing a minimum 20-inch clear opening. The assembly incorporates a continuous extruded aluminum vapor barrier frame secured with sealant and a flexible vapor barrier, backed by a 2-hour fire barrier. A bent plate, sized per structural drawings, ties into the existing 2-hour shaft wall and fire-rated parapet. At the roof level, an expansion joint roof cover (C/S MARC-2000) bridges the gap and aligns with existing parapet framing.
NEW NRC EAST EXTERIOR WALL EXG ECC WEST EXTERIOR WALL CLEAR, MIN. 20" SEISMIC JOINT VAPOR BARRIER SEALANT CONTINUOUS EXTRUDED ALUMINUM VAPOR BARRIER FRAME 2-HR FIRE BARRIER BENT PLATE- SEE STRUCTURAL DRAWINGS (N) 2-HR FIRE WALL (UL U415) (E) 2-HR SHAFT WALL (UL U415) (N) 2-HR FIRE WALL (N) HSS WALL SUPPORT (E) 2-HR FIRE RATED PARAPET 8" (N) EXPANSION JOINT ROOF COVER (C/S MARC-2000) 4" ALIGN W/(E) PARAPET FRAMING
