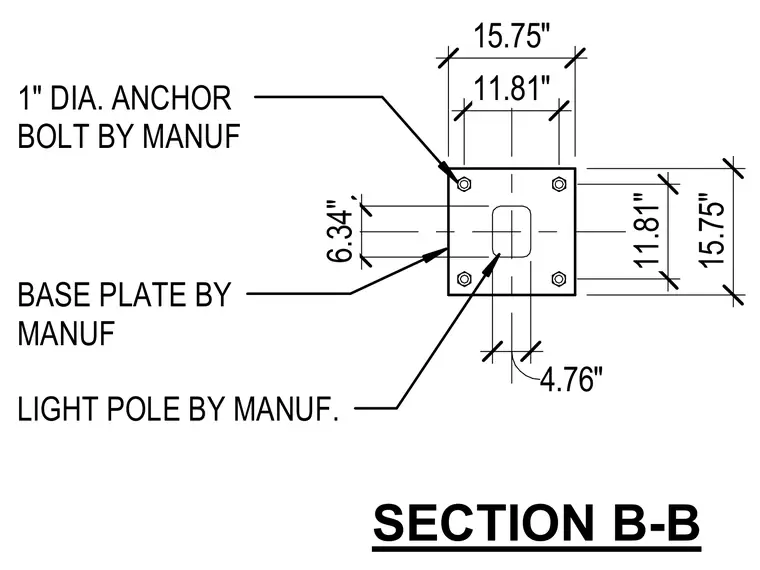

A light pole base plate is anchored by four one-inch diameter anchor bolts provided by the manufacturer. The square base plate features a central cutout for wiring and measures 15.75 inches by 15.75 inches overall. Anchor bolts are positioned on an 11.81-inch square bolt pattern.
15.75" 15.75" 11.81" 11.81" 4.76" 1" DIA. ANCHOR BOLT BY MANUF BASE PLATE BY MANUF LIGHT POLE BY MANUF. SECTION B-B 6.34"
