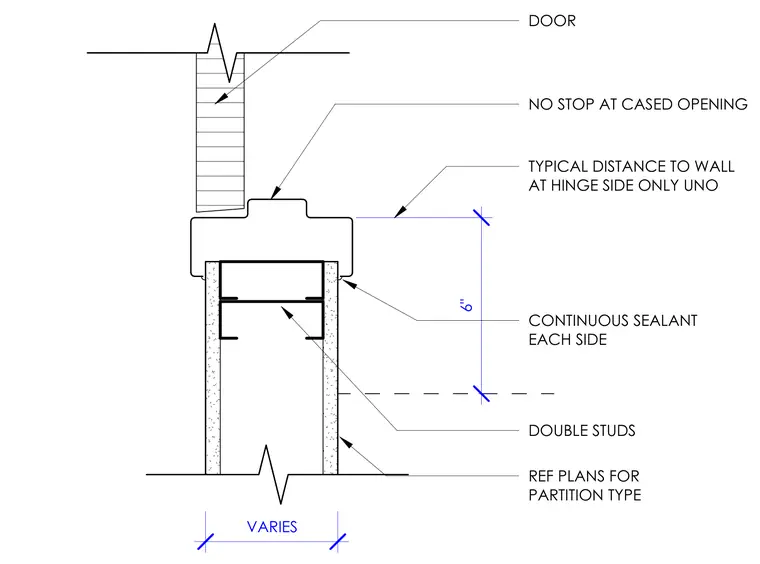

A cased opening door jamb occurs at a framed partition wall. Double metal studs reinforce the opening, with partition types referenced on the floor plans. A continuous bead of sealant is applied to each side of the frame. The door jamb features no stop at the cased opening, with a typical distance to the wall maintained at the hinge side only unless noted otherwise.
6" VARIES DOOR NO STOP AT CASED OPENING TYPICAL DISTANCE TO WALL AT HINGE SIDE ONLY UNO CONTINUOUS SEALANT EACH SIDE DOUBLE STUDS REF PLANS FOR PARTITION TYPE
