A ceiling clip manufactured by Hilti or approved equal fastens directly to the underside of a concrete slab or metal deck at the centerline of the flute. A vertical hanger wire passes downward through a 12-gauge wire wrapped with three tight turns. A number 10 self-tapping sheet metal screw secures through the electrical metallic tubing with a maximum five-eighths inch clearance.

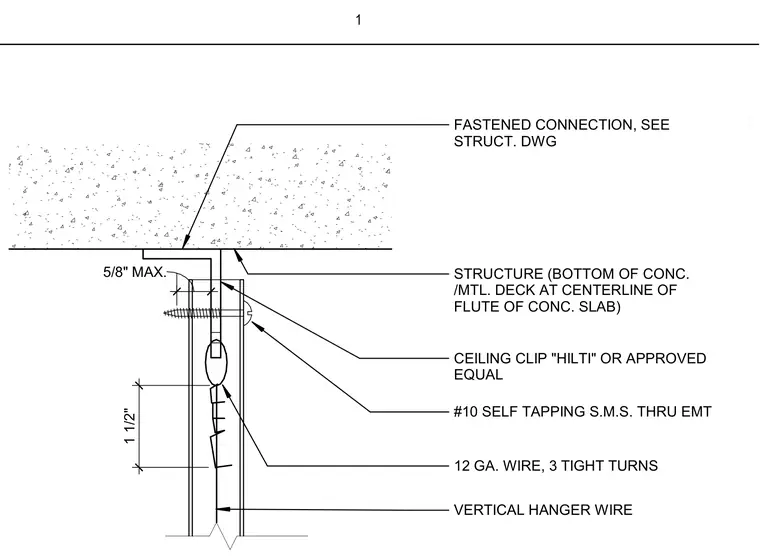

FASTENED CONNECTION, SEE STRUCT. DWG STRUCTURE (BOTTOM OF CONC. /MTL. DECK AT CENTERLINE OF FLUTE OF CONC. SLAB) CEILING CLIP "HILTI" OR APPROVED EQUAL #10 SELF TAPPING S.M.S. THRU EMT 12 GA. WIRE, 3 TIGHT TURNS VERTICAL HANGER WIRE 1 1/2" 5/8" MAX. 1
