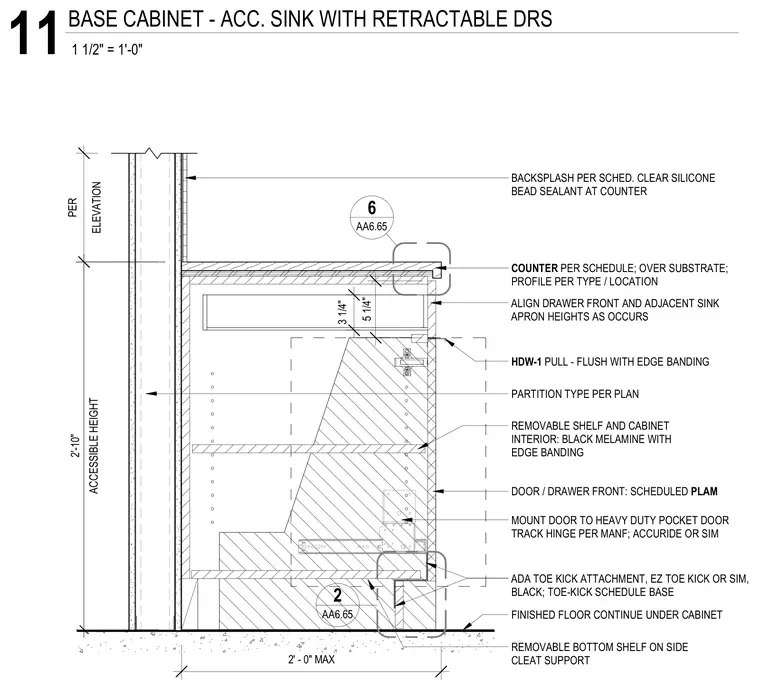

An interior millwork assembly features retractable pocket doors mounted to heavy-duty tracks on an accessible base cabinet. The countertop is set over a substrate with a clear silicone bead sealant at the backsplash, aligning the drawer front and adjacent sink apron heights as required. The interior features a black melamine finish with edge banding, including a removable shelf supported by side cleats and a removable bottom shelf. The assembly sits on an ADA-compliant black toe kick attachment, with the finished floor continuing underneath the cabinet base.
PARTITION TYPE PER PLAN BACKSPLASH PER SCHED. CLEAR SILICONE BEAD SEALANT AT COUNTER DOOR / DRAWER FRONT: SCHEDULED PLAM FINISHED FLOOR CONTINUE UNDER CABINET REMOVABLE SHELF AND CABINET INTERIOR: BLACK MELAMINE WITH EDGE BANDING COUNTER PER SCHEDULE; OVER SUBSTRATE; PROFILE PER TYPE / LOCATION ALIGN DRAWER FRONT AND ADJACENT SINK APRON HEIGHTS AS OCCURS 5 1/4" ACCESSIBLE HEIGHT 2'-10" 2' - 0" MAX ELEVATION PER 3 1/4" MOUNT DOOR TO HEAVY DUTY POCKET DOOR TRACK HINGE PER MANF; ACCURIDE OR SIM ADA TOE KICK ATTACHMENT, EZ TOE KICK OR SIM, BLACK; TOE-KICK SCHEDULE BASE REMOVABLE BOTTOM SHELF ON SIDE CLEAT SUPPORT HDW-1 PULL - FLUSH WITH EDGE BANDING AA6.65 6 AA6.65 2 1 1/2" = 1'-0" 11 BASE CABINET - ACC. SINK WITH RETRACTABLE DRS
