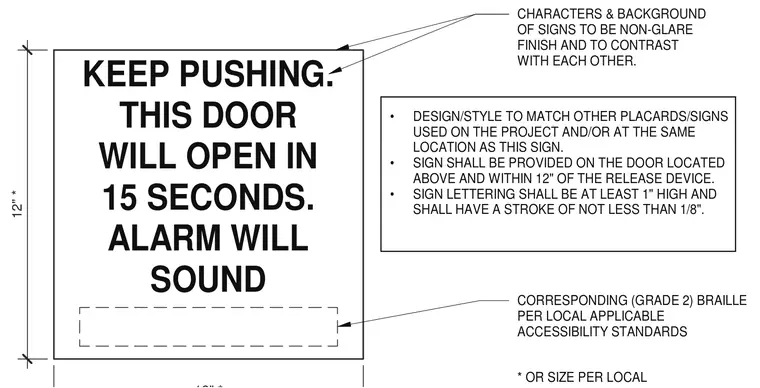

The delayed egress signage requires a non-glare finish with contrasting characters and background, featuring a minimum letter height of 1 inch and a stroke of not less than 1/8 inch. The sign reads KEEP PUSHING. THIS DOOR WILL OPEN IN 15 SECONDS. ALARM WILL SOUND, and includes corresponding Grade 2 Braille per local applicable accessibility standards. The placard must be positioned on the door above and within 12 inches of the release device while matching the overall design and style of other project signage.
KEEP PUSHING. THIS DOOR WILL OPEN IN 15 SECONDS. ALARM WILL SOUND 12" * CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. CORRESPONDING (GRADE 2) BRAILLE PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS * OR SIZE PER LOCAL • DESIGN/STYLE TO MATCH OTHER PLACARDS/SIGNS USED ON THE PROJECT AND/OR AT THE SAME LOCATION AS THIS SIGN. • SIGN SHALL BE PROVIDED ON THE DOOR LOCATED ABOVE AND WITHIN 12" OF THE RELEASE DEVICE. • SIGN LETTERING SHALL BE AT LEAST 1" HIGH AND SHALL HAVE A STROKE OF NOT LESS THAN 1/8".
