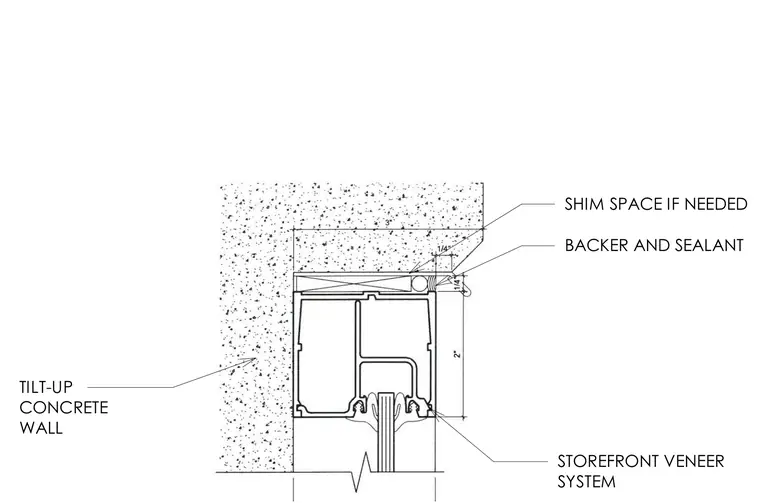

A storefront veneer system is set within an opening in a tilt-up concrete wall. A shim space is provided as needed between the storefront head and the concrete substrate. A joint sealed with backer rod and sealant finishes the transition between the aluminum storefront frame and the concrete edge.
TILT-UP CONCRETE WALL STOREFRONT VENEER SYSTEM SHIM SPACE IF NEEDED BACKER AND SEALANT
