Architectural · A-MK793

Witness Desk Base

Materials

Concrete Steel Timber / Wood

Elements

Columns Facades / Cladding Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Welded Connection Embed Plate

About this detail

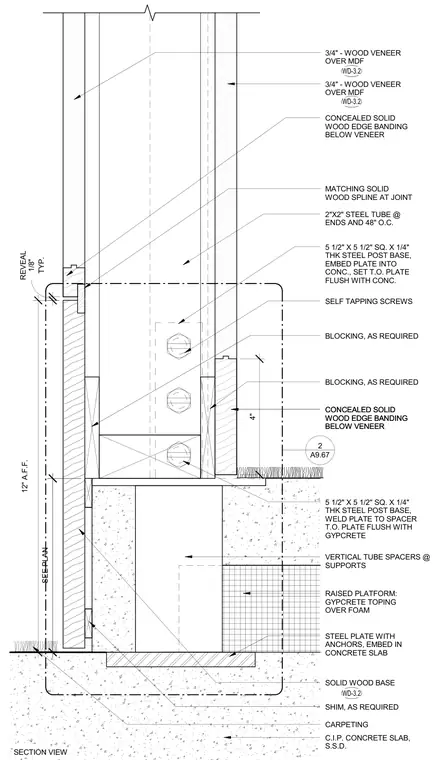

This architectural detail shows the base assembly for a witness desk anchored to a raised platform and cast-in-place concrete slab. The superstructure consists of 2-inch by 2-inch steel tubes spaced at ends and 48 inches on center, secured to 5-and-a-half-inch by 5-and-a-half-inch by quarter-inch thick square steel post bases with self-tapping screws. The base plates weld to vertical tube spacers and are set flush with the top of the gypcrete topping over foam insulation. The desk cladding features three-quarter-inch wood veneer over medium-density fiberboard with concealed solid wood edge banding below the veneer, matching solid wood splines at joints, and required wood blocking. The base sits on a solid wood base with shims as required, adjacent to carpeting, with a typical one-eighth-inch reveal.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
