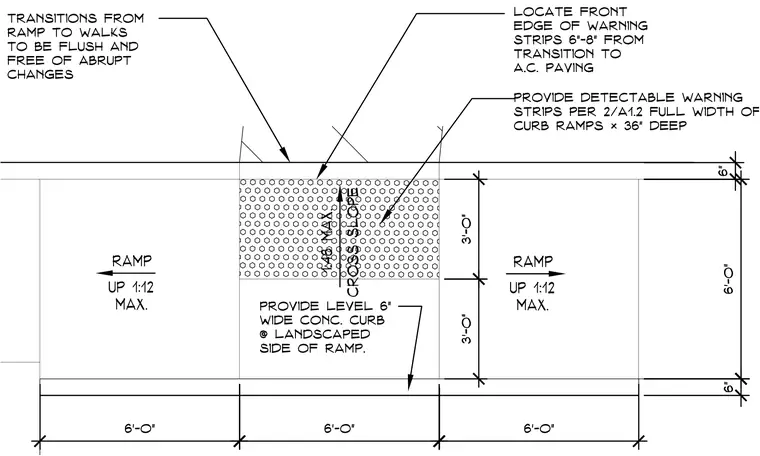

Accessible curb ramps require a 1:12 maximum slope transitioning flush to walks and free of abrupt changes. Detectable warning strips span the full width of the curb ramps with a depth of thirty-six inches and are located six to eight inches from the asphalt concrete paving transition. A level six-inch wide concrete curb is provided at the landscaped side of the ramp.
