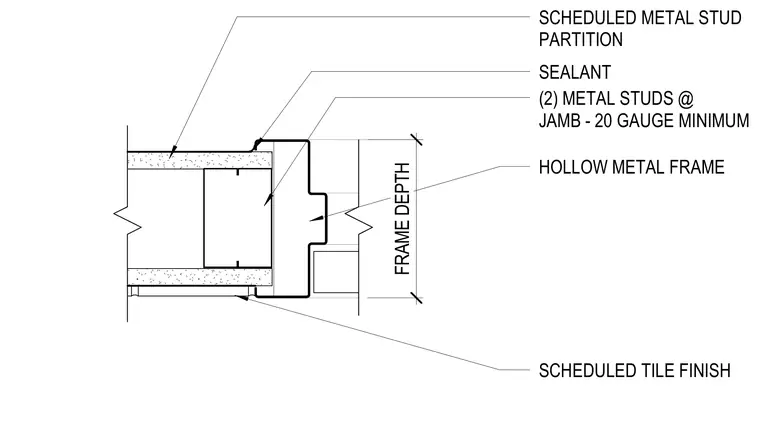

A hollow metal frame connects to a scheduled metal stud partition framed with two twenty-gauge metal studs at the jamb. Sealant is applied at the interface between the metal frame and the wall finish. A scheduled tile finish is detailed returning to the frame profile.
SEALANT HOLLOW METAL FRAME SCHEDULED METAL STUD PARTITION (2) METAL STUDS @ JAMB - 20 GAUGE MINIMUM FRAME DEPTH SCHEDULED TILE FINISH
