Architectural · A-MJT4C

Parapet and Integrated Gutter Plan Detail at Northeast Corner

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Membrane / Roofing

Elements

Columns Walls Roofs Parapets Waterproofing / Flashing Drainage Reinforcing

Connections

HSS Connection

About this detail

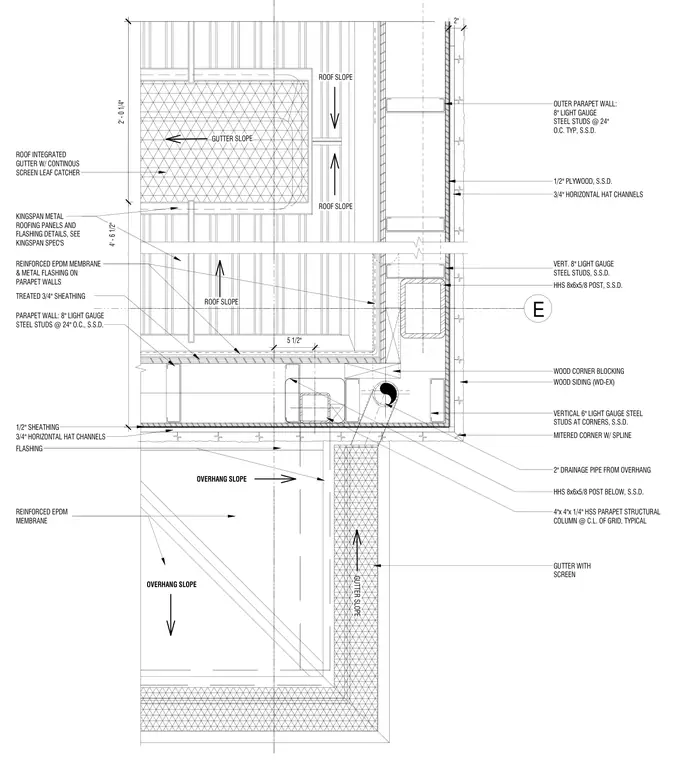

Northeast corner parapet assembly and roof overhang drainage integration. The outer parapet wall is framed with eight-inch light gauge steel studs spaced at twenty-four inches on center with one-half-inch plywood sheathing and three-quarter-inch horizontal hat channels supporting exterior wood siding. An eight-by-six-by-five-eighths hollow structural section post is integrated into the corner wall framing, accompanied by a four-by-four-by-one-quarter-inch HSS parapet structural column located at the centerline of the grid. The parapet walls and top surfaces are waterproofed with a reinforced ethylene propylene diene monomer membrane over treated three-quarter-inch sheathing and one-half-inch sheathing. An integrated roof gutter with a continuous screen leaf catcher is positioned within the roof slope to collect drainage, discharging via a two-inch drainage pipe from the overhang. Kingsman metal roofing panels and associated flashing details are installed per manufacturer specifications.
