An aluminum window system mullion rests on shims above a pre-finished aluminum sill pan and a sloped waterproofing membrane that drains outward. A backer rod and sealant joint seals the interface between the window frame and the sill. Below, weathered Cor-Ten steel panels run vertically over rigid insulation and a drainage cavity set between vertical Z-channels. High-temperature water-resistive barrier and self-adhered flashing protect the exterior sheathing and framing. Any penetrations in the waterproofing membrane and water-resistive barrier must be fully sealed.

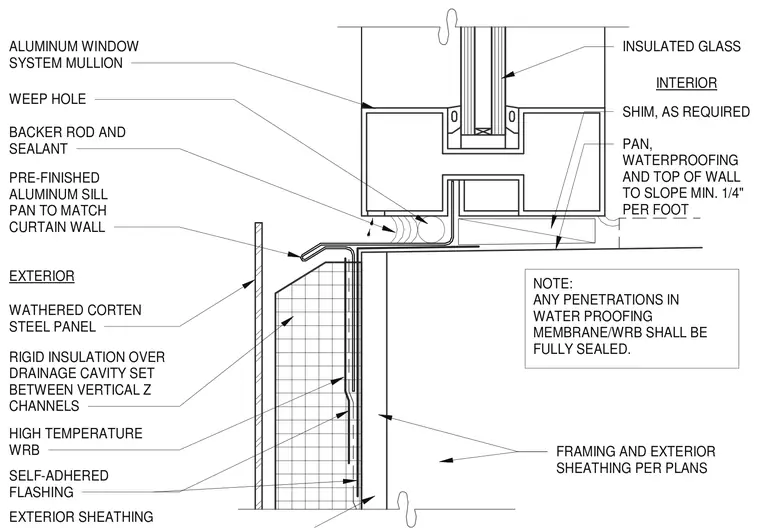

EXTERIOR FRAMING AND EXTERIOR SHEATHING PER PLANS SHIM, AS REQUIRED INSULATED GLASS NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. INTERIOR PRE-FINISHED ALUMINUM SILL PAN TO MATCH CURTAIN WALL EXTERIOR SHEATHING ALUMINUM WINDOW SYSTEM MULLION WEEP HOLE BACKER ROD AND SEALANT HIGH TEMPERATURE WRB WATHERED CORTEN STEEL PANEL SELF-ADHERED FLASHING PAN, WATERPROOFING AND TOP OF WALL TO SLOPE MIN. 1/4" PER FOOT RIGID INSULATION OVER DRAINAGE CAVITY SET BETWEEN VERTICAL Z CHANNELS
