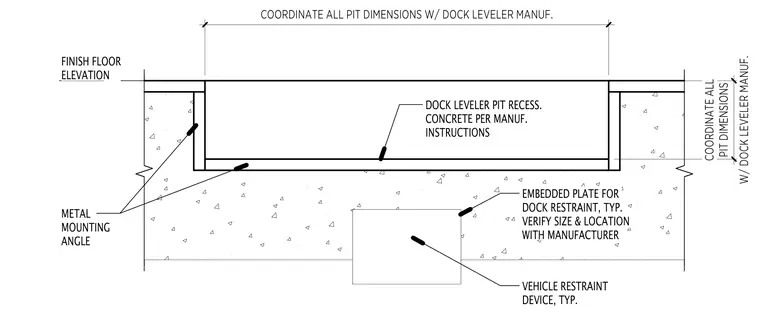

A concrete dock leveler pit recess incorporates metal mounting angles at the slab edges and an embedded plate cast into the concrete slab for the typical vehicle restraint device. All pit dimensions and sizing must be coordinated with the dock leveler manufacturer instructions.
COORDINATE ALL PIT DIMENSIONS W/ DOCK LEVELER MANUF. W/ DOCK LEVELER MANUF. COORDINATE ALL PIT DIMENSIONS METAL MOUNTING ANGLE DOCK LEVELER PIT RECESS. CONCRETE PER MANUF. INSTRUCTIONS FINISH FLOOR ELEVATION EMBEDDED PLATE FOR DOCK RESTRAINT, TYP. VERIFY SIZE & LOCATION WITH MANUFACTURER VEHICLE RESTRAINT DEVICE, TYP.
