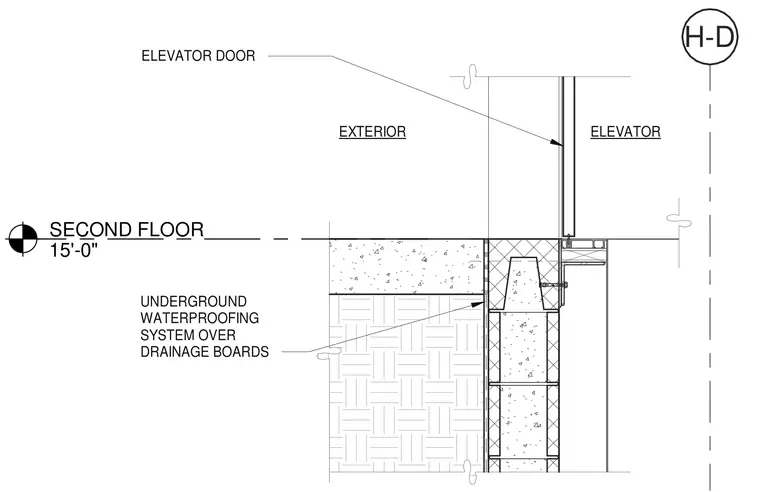

An elevator door assembly sits at the second floor level above an exterior wall constructed with concrete masonry units. An underground waterproofing system over drainage boards protects the exterior face of the wall. The second floor datum is established at 15'-0".
H-D SECOND FLOOR 15'-0" EXTERIOR ELEVATOR ELEVATOR DOOR UNDERGROUND WATERPROOFING SYSTEM OVER DRAINAGE BOARDS
