Architectural · A-MJ3P5

Type a ADA Kitchen Cabinets

Materials

Elements

About this detail

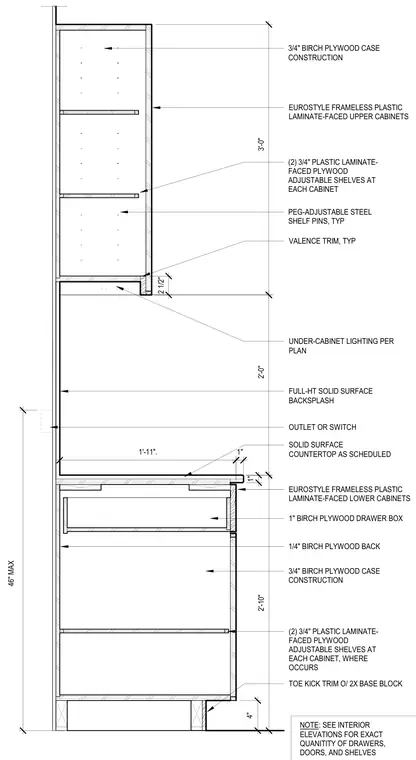

An ADA-compliant kitchen cabinet assembly features eurostyle frameless plastic laminate-faced upper and lower cabinets constructed with three-quarter-inch birch plywood case walls and one-quarter-inch birch plywood backs. The lower base cabinet rests on a four-inch high toe kick trim over a two-by wood base block, supporting a solid surface countertop as scheduled and a full-height solid surface backsplash with provisions for outlets or switches mounted at a maximum height of forty-six inches. Two three-quarter-inch plastic laminate-faced plywood adjustable shelves are installed at each cabinet using peg-adjustable steel shelf pins. The upper cabinet features a valence trim concealing under-cabinet lighting per plan.
