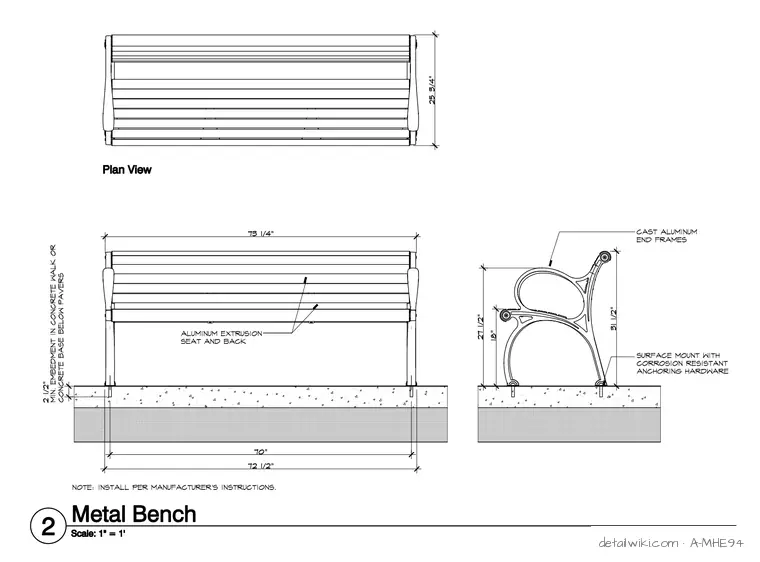

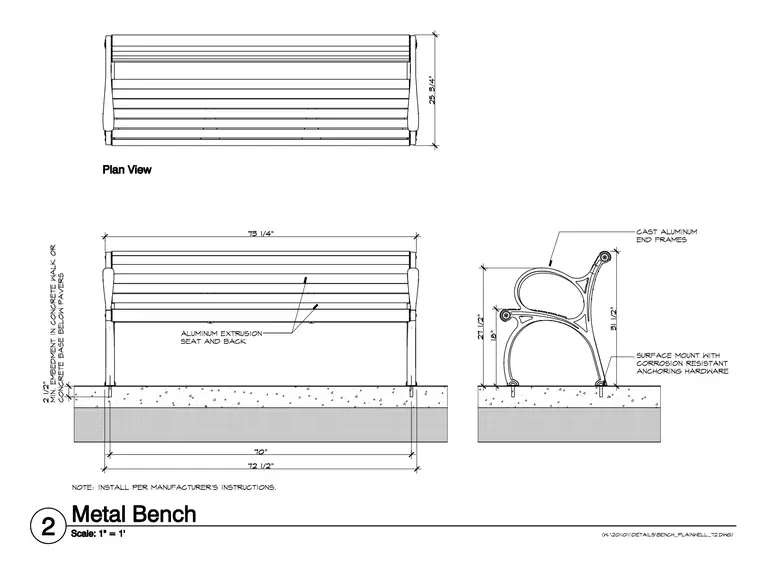

The metal bench features aluminum extrusion seat and back slats supported by cast aluminum end frames. The assembly is surface mounted or embedded two and one half inches minimum into a concrete walk or concrete base below pavers using corrosion resistant anchoring hardware. Overall dimensions include a length of seventy three and one quarter inches, a height of thirty one and one half inches, and a depth of twenty five and three quarter inches, with a seat height of eighteen inches. Installation must be performed per the manufacturer's instructions.
