Architectural · A-MHDAX

Curtain Wall Interface at Parking Level Slab Edge

Materials

Elements

Walls Curtain Walls Storefronts Floors / Slabs

About this detail

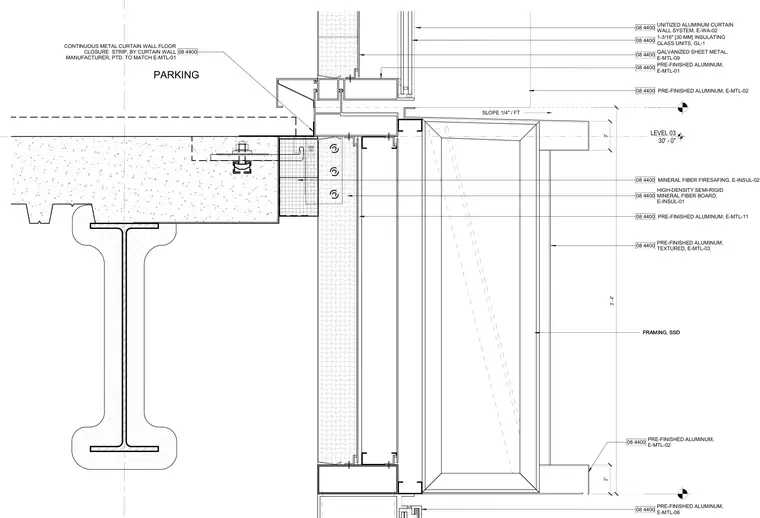

Transition between a unitized aluminum curtain wall system and a structural concrete floor slab at Level 03, situated at elevation 30 feet 0 inches. The concrete slab bears on a structural steel beam and features an embedded anchor channel with an anchor bolt connection. Mineral fiber firesafing insulation and high-density semi-rigid mineral fiber board are installed at the slab edge for firestopping. A continuous metal curtain wall floor closure strip, painted to match the pre-finished aluminum framing, bridges the gap between the slab and the glazing system. The exterior features pre-finished textured aluminum panels and 1-3/16 inch insulating glass units, with a sloped flashing detail at the parking deck level.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
