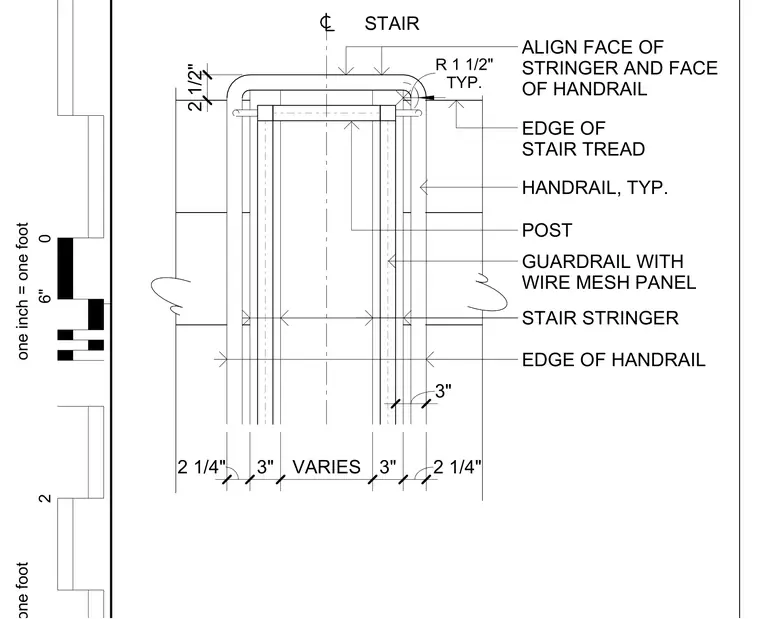

This plan detail shows the horizontal geometry and alignment between a stair stringer and a handrail with a wire mesh panel guardrail. The layout establishes a standard relationship where the face of the stringer aligns with the face of the handrail, maintaining specific dimensional clearances from the stair centerline. Posts, stair treads, and handrails are positioned with typical offsets and dimensions, including a 1-1/2 inch radius curve at the handrail return. Dimensional callouts indicate variable spacing across the stair assembly with specific edge distances for the treads and handrail components.
2 1/2" 2 1/4" 3" VARIES 3" 2 1/4" STAIR TYP. R 1 1/2" 3" STAIR STRINGER GUARDRAIL WITH WIRE MESH PANEL EDGE OF HANDRAIL POST EDGE OF STAIR TREAD HANDRAIL, TYP. ALIGN FACE OF STRINGER AND FACE OF HANDRAIL one inch = one foot 0 6" 2
