A two-by-eight number two Southern Pine pressure-treated wall buck attaches to a steel stud or blocked stud wall by others. A three-eighths-inch zinc-plated threaded rod passes through the wall buck and the stud assembly, secured on the exterior with a zinc-plated flat washer and a three-eighths-inch zinc-plated hex nut. The rod is double-nutted to the steel stud or blocking using two three-eighths-inch zinc-plated hex nuts and two three-eighths-inch zinc split lockwashers.

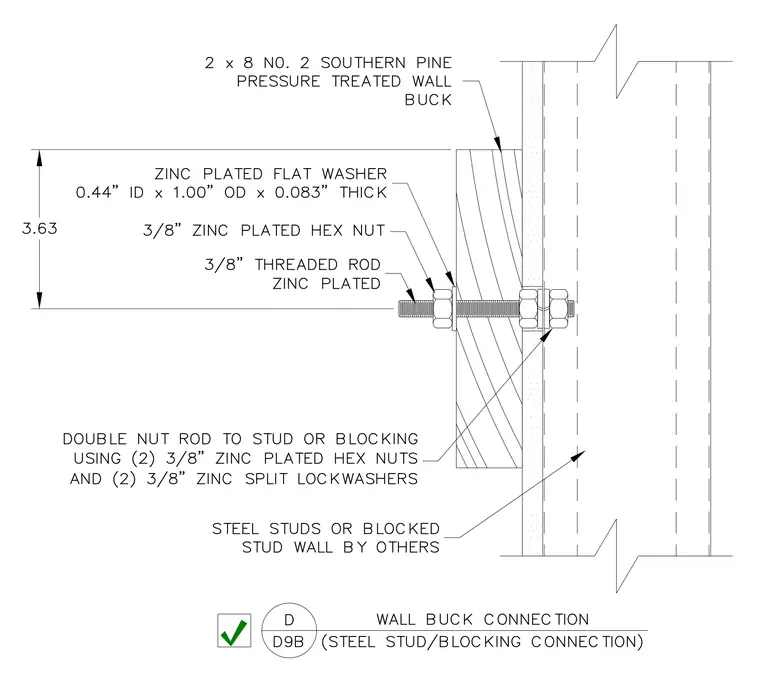

3/8" ZINC PLATED HEX NUT ZINC PLATED FLAT WASHER 0.44" ID x 1.00" OD x 0.083" THICK 3/8" THREADED ROD ZINC PLATED 2 x 8 N0. 2 SOUTHERN PINE PRESSURE TREATED WALL BUCK STEEL STUDS OR BLOCKED STUD WALL BY OTHERS DOUBLE NUT ROD TO STUD OR BLOCKING USING (2) 3/8" ZINC PLATED HEX NUTS AND (2) 3/8" ZINC SPLIT LOCKWASHERS 3.63 WALL BUCK CONNECTION D D9B (STEEL STUD/BLOCKING CONNECTION) T T )V JIMC i i
