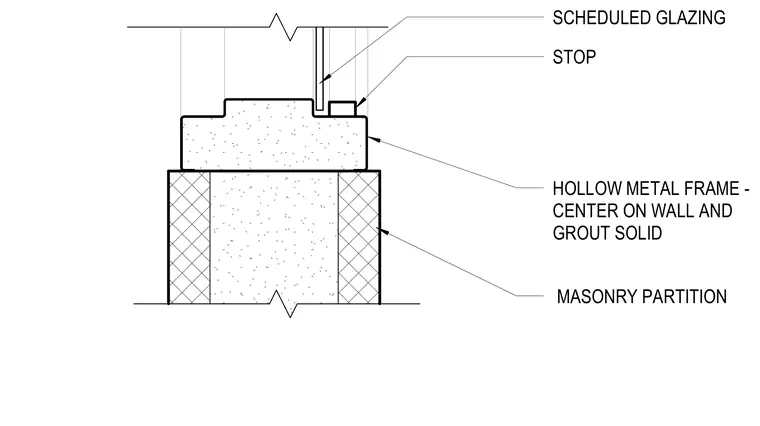

An interior window sill assembly transitions from a masonry partition up to a hollow metal frame centered on the wall and grouted solid. Scheduled glazing is installed into the frame and secured with a stop.
HOLLOW METAL FRAME - CENTER ON WALL AND GROUT SOLID MASONRY PARTITION STOP SCHEDULED GLAZING
