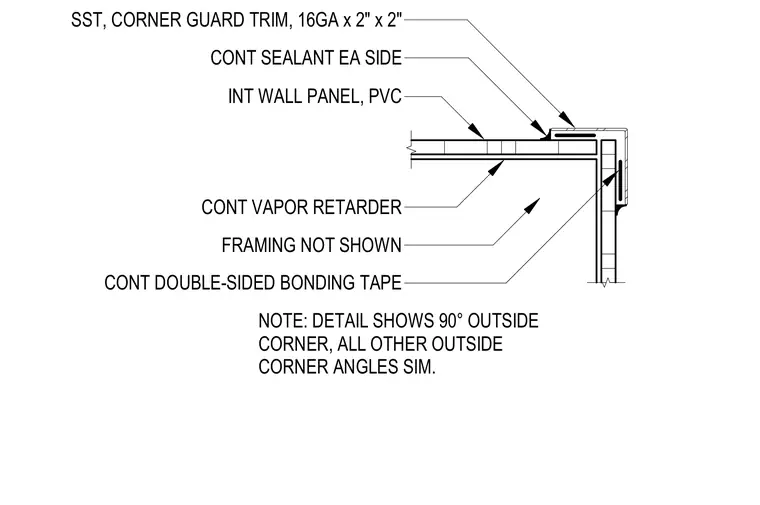

An interior PVC wall panel turns a ninety-degree outside corner protected by a stainless steel corner guard trim. A continuous two-inch by two-inch sixteen-gauge steel angle forms the corner subassembly, secured with continuous double-sided bonding tape on each side. Continuous sealant beads seal the joint edges at the panel interfaces. A continuous vapor retarder runs behind the PVC panels over framing that is not shown.
INT WALL PANEL, PVC SST, CORNER GUARD TRIM, 16GA x 2" x 2" CONT VAPOR RETARDER FRAMING NOT SHOWN CONT DOUBLE-SIDED BONDING TAPE CONT SEALANT EA SIDE NOTE: DETAIL SHOWS 90° OUTSIDE CORNER, ALL OTHER OUTSIDE CORNER ANGLES SIM.
