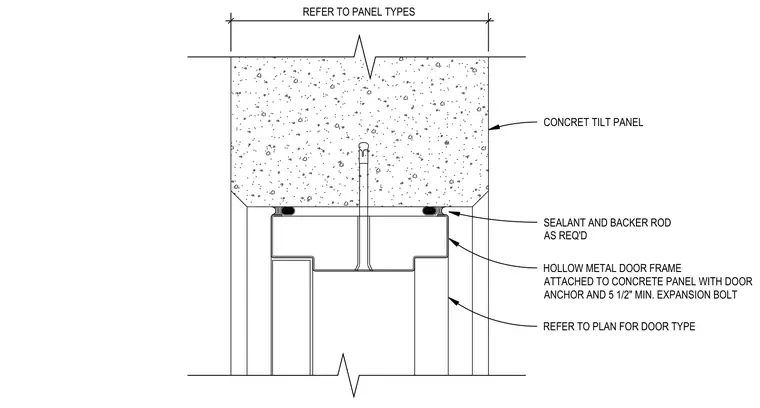

A hollow metal door frame connects to a concrete tilt-up panel using a door anchor and a 5 1/2-inch minimum expansion bolt. Sealant and backer rod are installed at the joint between the frame and the concrete panel as required. The door type is determined per plan and the concrete tilt panel is detailed per panel types.
SEALANT AND BACKER ROD AS REQ'D HOLLOW METAL DOOR FRAME ATTACHED TO CONCRETE PANEL WITH DOOR ANCHOR AND 5 1/2" MIN. EXPANSION BOLT REFER TO PLAN FOR DOOR TYPE CONCRET TILT PANEL REFER TO PANEL TYPES
