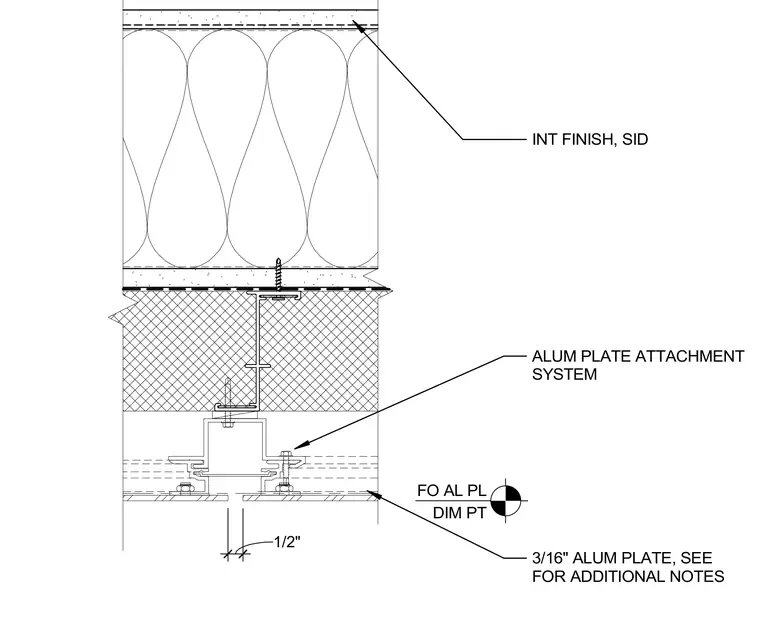

A three-sixteenth-inch aluminum plate is secured via an aluminum plate attachment system featuring a half-inch dimension point. An interior finish is applied to the substrate above, and a vertical joint width of one-half inch is maintained between panel edges.
3/16" ALUM PLATE, SEE FOR ADDITIONAL NOTES ALUM PLATE ATTACHMENT SYSTEM 1/2" FO AL PL DIM PT INT FINISH, SID
