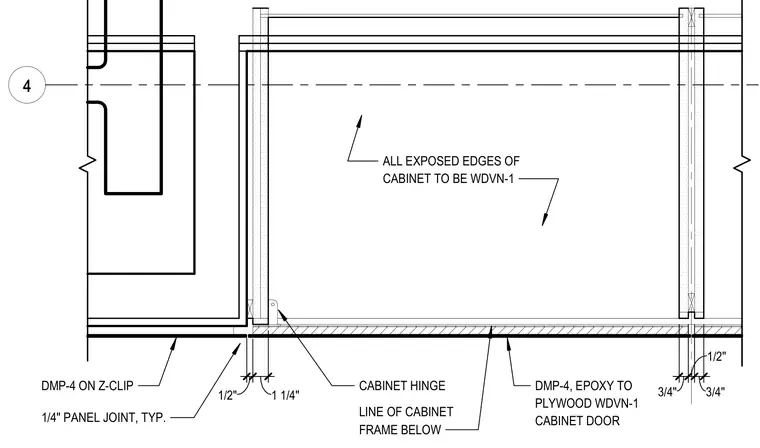

Custom reception millwork features decorative DMP-4 panels mounted on Z-clips over plywood substrate. Cabinet doors finished with wood veneer (WDVN-1) are attached via concealed cabinet hinges aligning with the cabinet frame below. Panel joints are detailed with typical one-quarter-inch gaps, and all exposed cabinet edges are finished with WDVN-1 veneer.
4 1 1 / 4 " 1 / 2 " 3 / 4 " 1 / 2 " 3 / 4 " DMP-4 ON Z-CLIP DMP-4, EPOXY TO PLYWOOD WDVN-1 CABINET DOOR ALL EXPOSED EDGES OF CABINET TO BE WDVN-1 CABINET HINGE LINE OF CABINET FRAME BELOW 1/4" PANEL JOINT, TYP.
