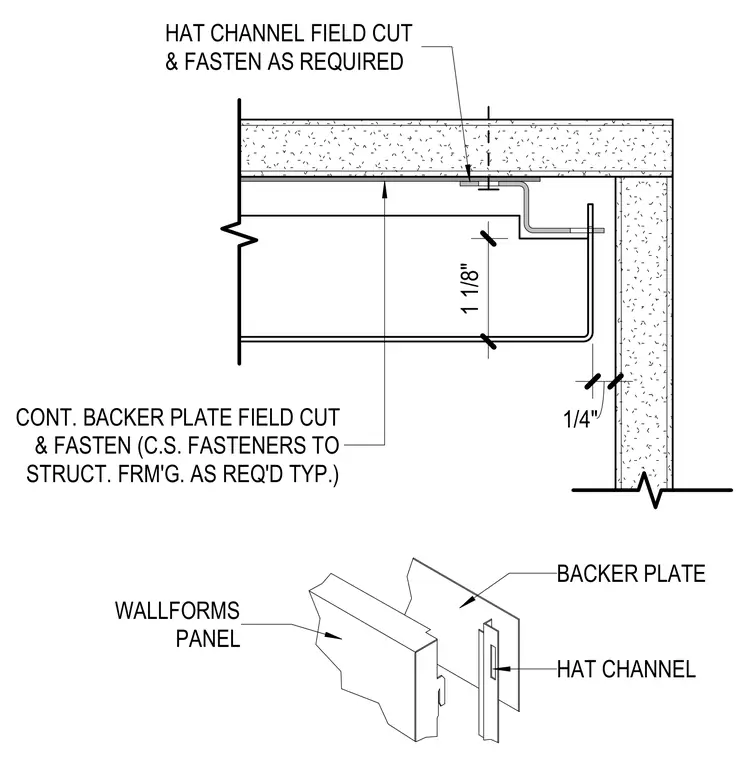

A continuous backer plate is field-cut and fastened to the structural framing using cold-formed steel fasteners as required. A hat channel is field-cut and fastened to the backer plate. Wallforms panels tie into the perimeter trim assembly with specified clearances and fasteners.
HAT CHANNEL BACKER PLATE WALLFORMS PANEL HAT CHANNEL FIELD CUT & FASTEN AS REQUIRED CONT. BACKER PLATE FIELD CUT & FASTEN (C.S. FASTENERS TO STRUCT. FRM'G. AS REQ'D TYP.) 1/4" 1 1/8"
