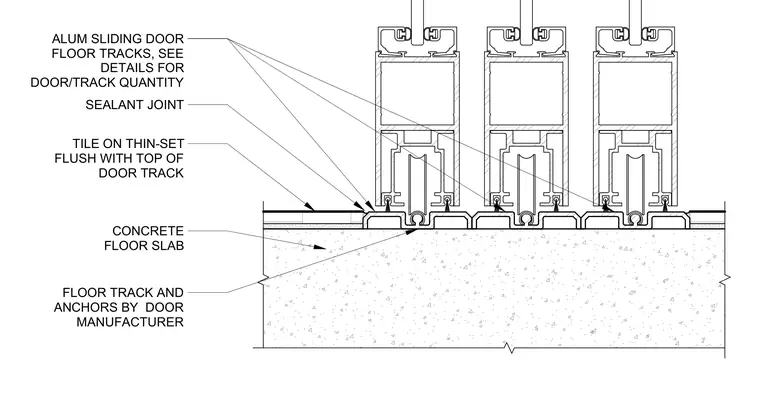

Aluminum sliding door floor tracks bear directly on a concrete floor slab and are secured with anchors supplied by the door manufacturer. Tile set in thin-set mortar aligns flush with the top of the door track, separated from it by a sealant joint.
ALUM SLIDING DOOR FLOOR TRACKS, SEE DETAILS FOR DOOR/TRACK QUANTITY TILE ON THIN-SET FLUSH WITH TOP OF DOOR TRACK CONCRETE FLOOR SLAB SEALANT JOINT FLOOR TRACK AND ANCHORS BY DOOR MANUFACTURER
