Architectural · A-MGA77

Sink Casework

Materials

Elements

About this detail

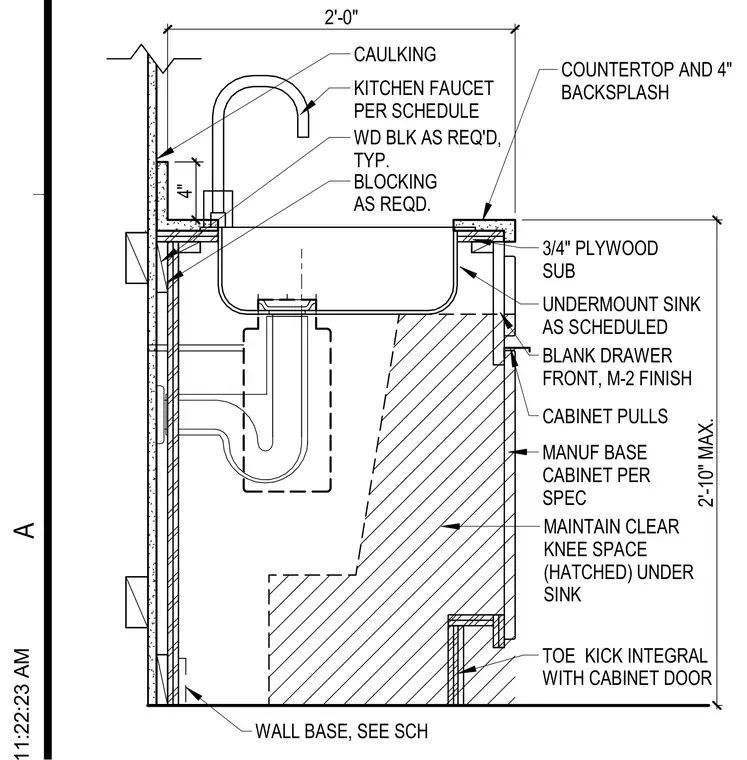

This interior millwork detail shows a manufactured base cabinet with a three-quarter-inch plywood substrate supporting a countertop and a four-inch backsplash. An undermount sink is installed with a kitchen faucet, connected to piping with required wood blocking and caulking against the wall. The assembly features a blank drawer front with cabinet pulls, an integral toe kick at the base, and a wall base at the floor finish. A hatched clear knee space is maintained beneath the sink in compliance with accessibility requirements.
